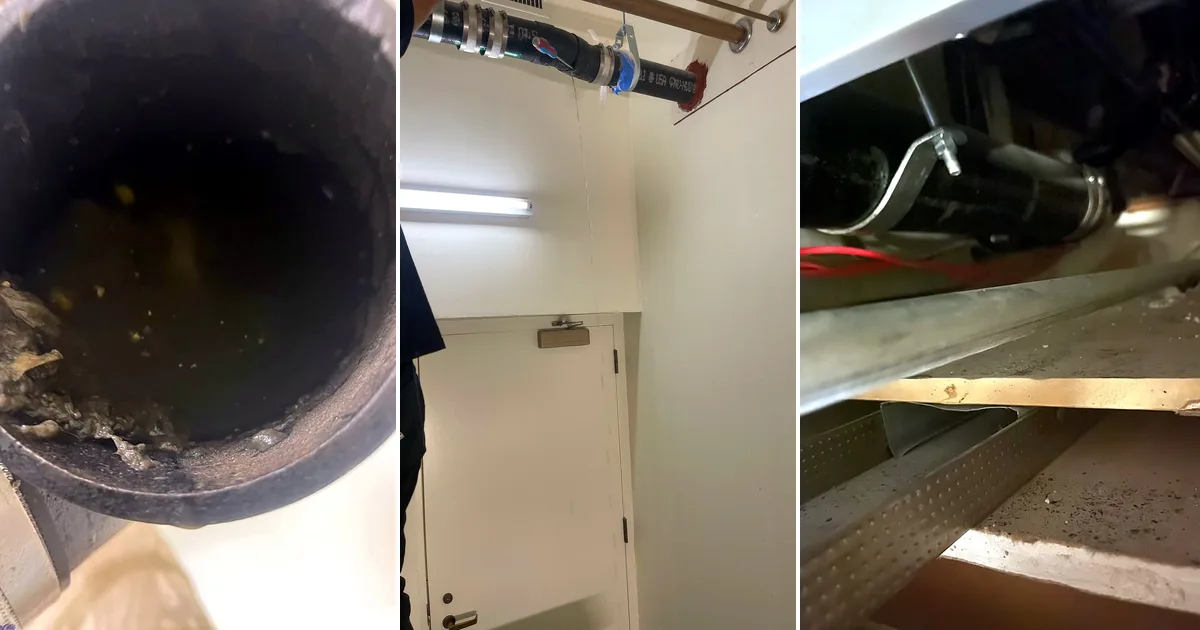

Fully Clogged Cast Iron Drain Line: A Real Repair in Palo Alto

A drain that backs up once can be a simple clog. A drain that keeps backing up, gurgles, or drains slower every month usually means the pipe itself is the problem. That was the case at this building in Palo Alto. The cast iron drain line above a hallway ceiling was completely blocked, and when our team opened it up, the reason was clear: years of buildup had narrowed the inside of the pipe until almost nothing could pass. Here is what we found and how we fixed it.

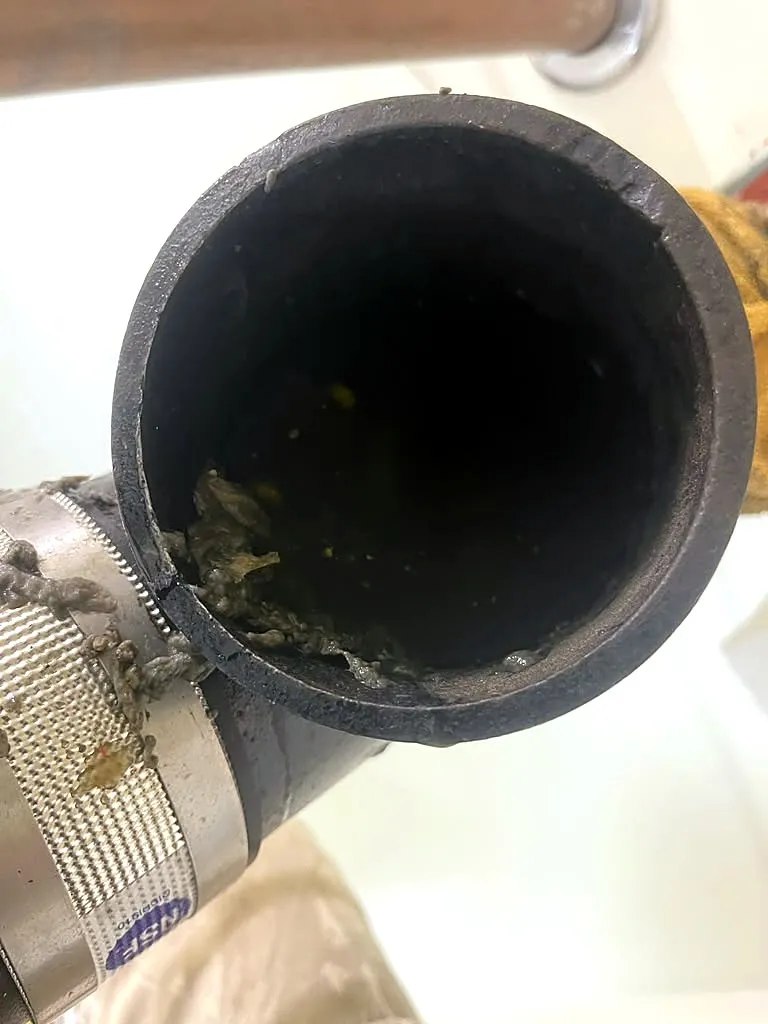

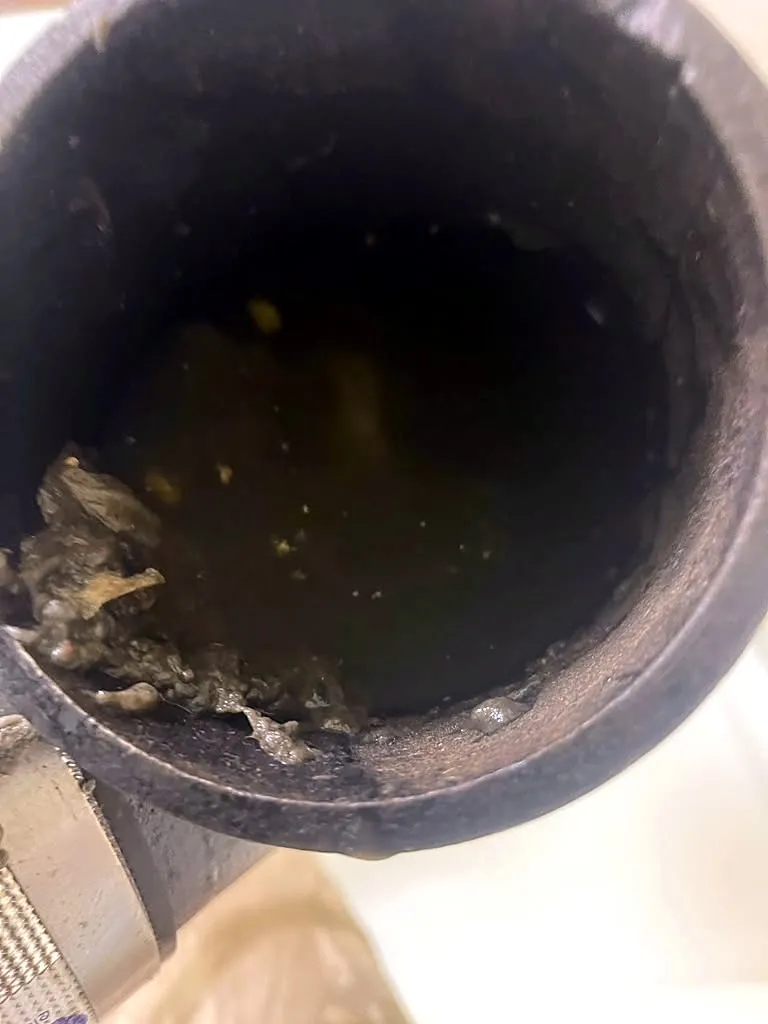

What we found inside the pipe

Cast iron drain pipes were the standard in Bay Area buildings for decades. They are strong, but the inside wall slowly corrodes and gets rough. Grease, paper and debris catch on that rough surface and build up layer by layer. Bends are the worst spot, because waste slows down as it changes direction. In this line, the 90 degree bend in the middle of the run had so much buildup that the line was fully clogged.

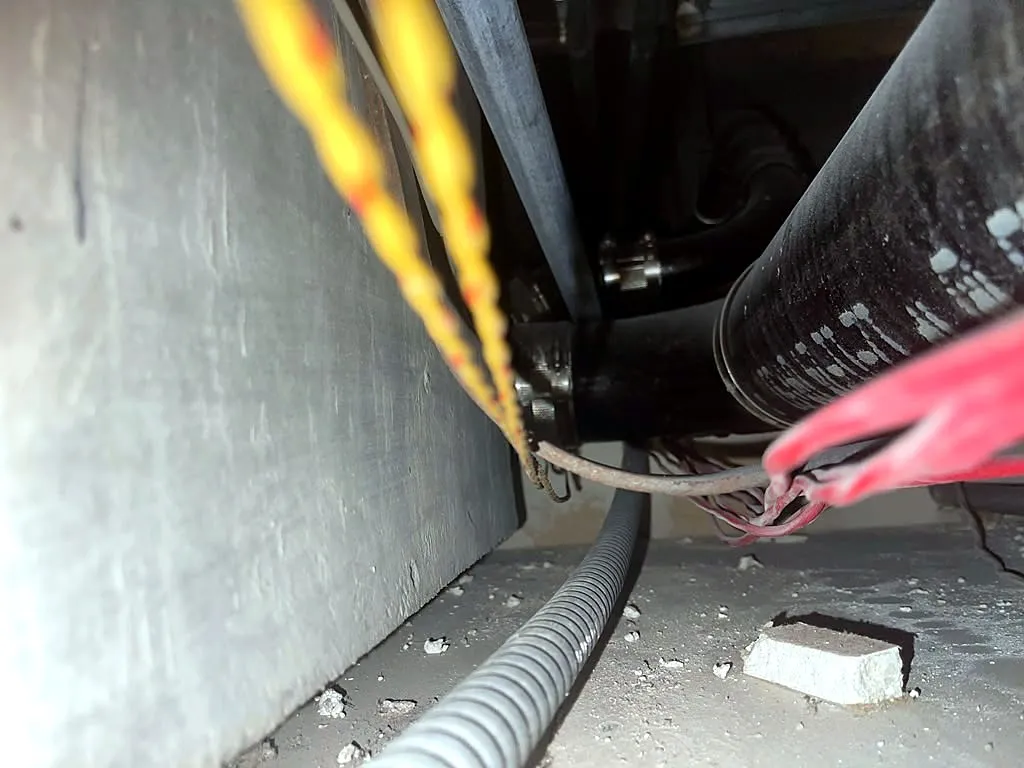

Step 1: Clearing the line

Before replacing anything, the crew cleaned out the line so the rest of the run would drain freely once the new pipe was in. Working above a ceiling means tight space between conduits, pipes and framing, so every pass was done carefully to avoid damaging the other systems sharing the space.

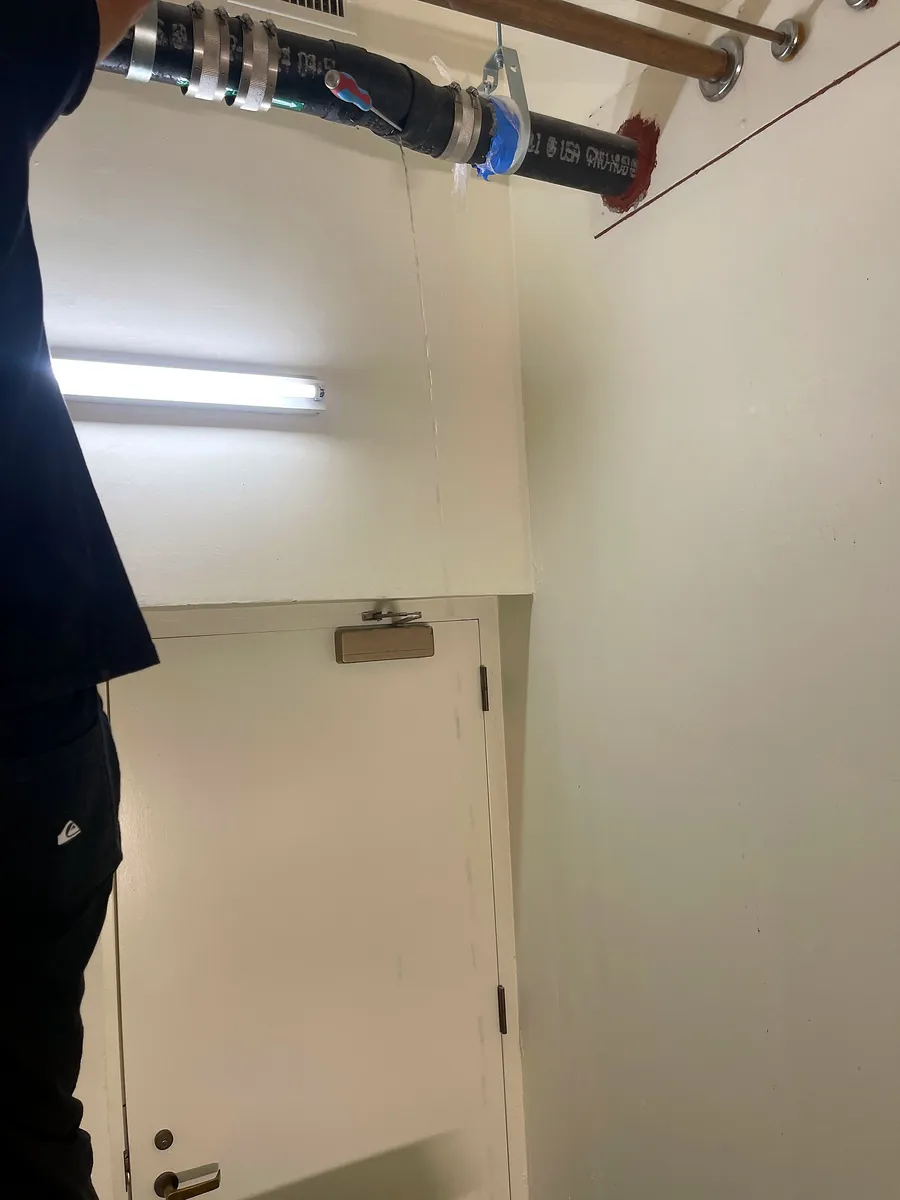

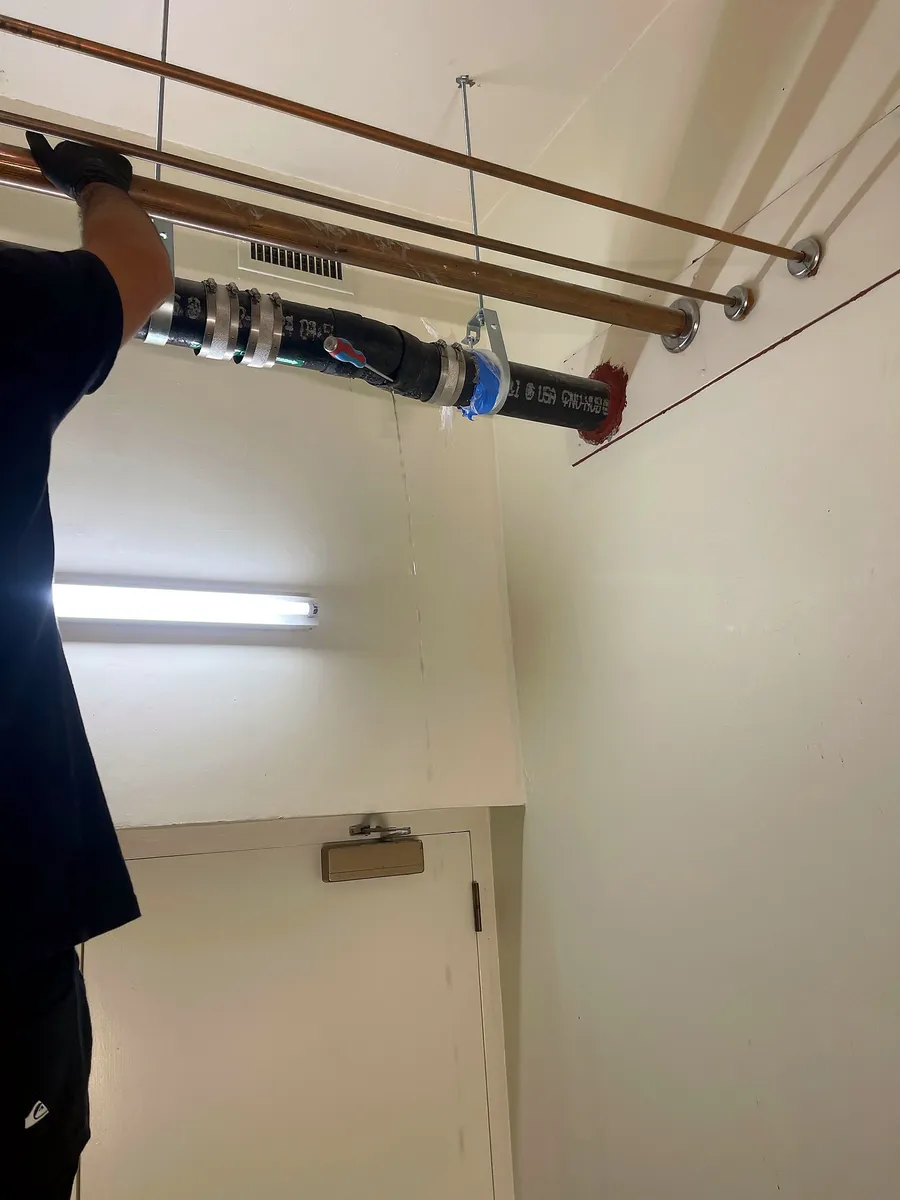

Step 2: Replacing the 90 degree bend and 10 feet of pipe

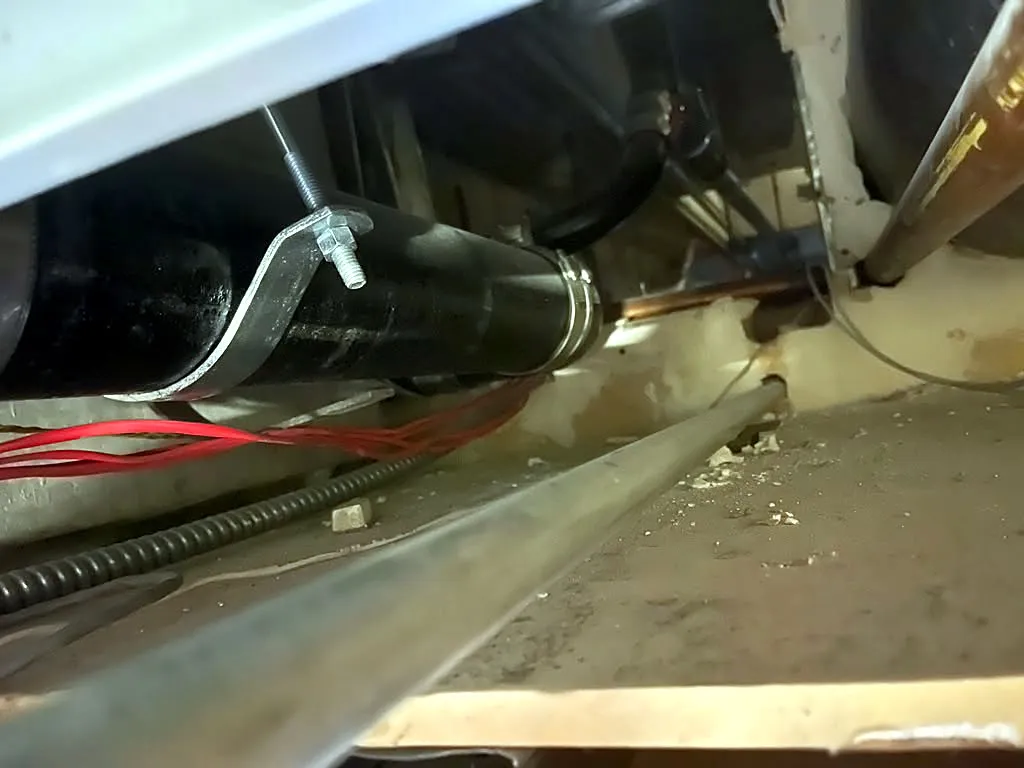

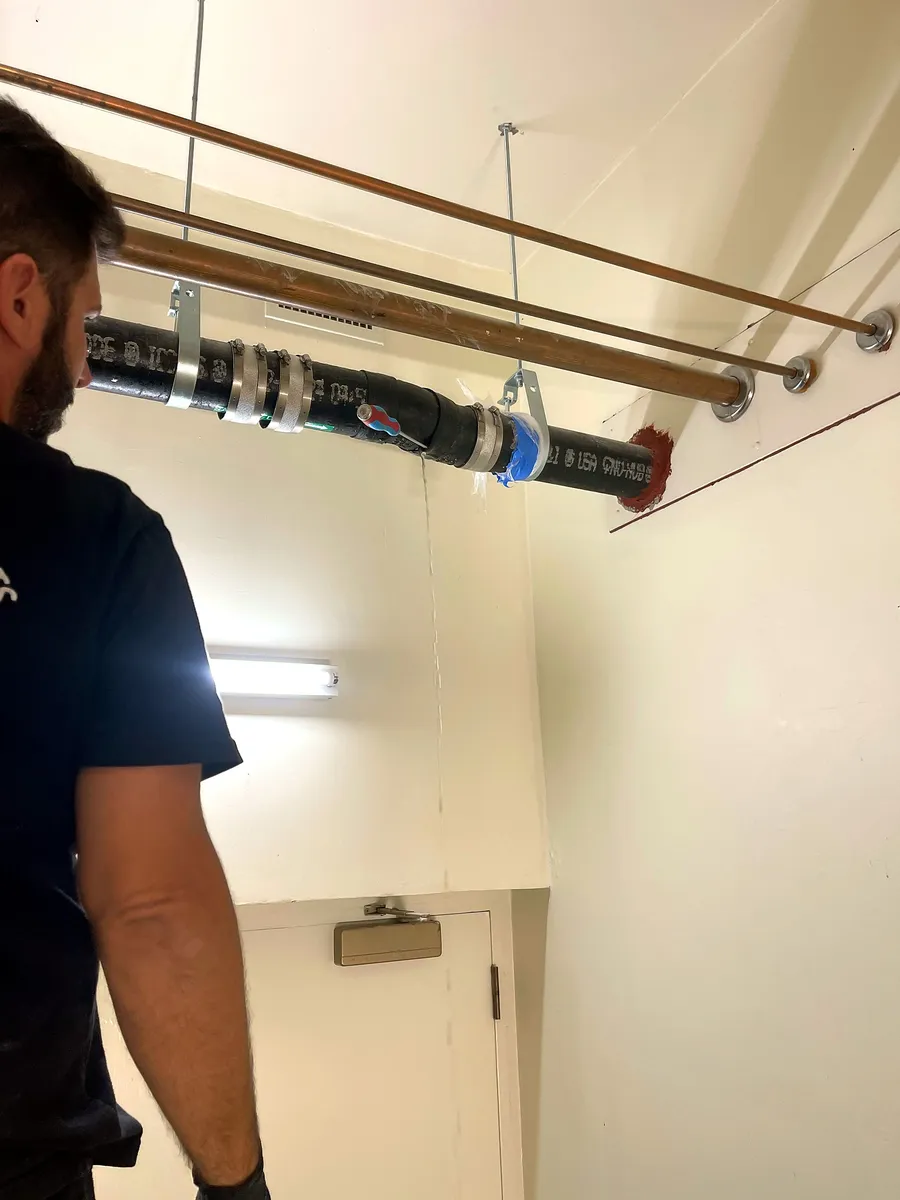

Cleaning alone would not have been enough. The bend and the pipe next to it were too corroded to stay in service, and they would have clogged again. The team cut out the damaged section, replaced the 90 degree cast iron bend in the middle of the run, and installed 10 feet of new cast iron pipe. The new sections were joined with no-hub couplings and supported by pipe hangers so the line keeps its slope and does not sag.

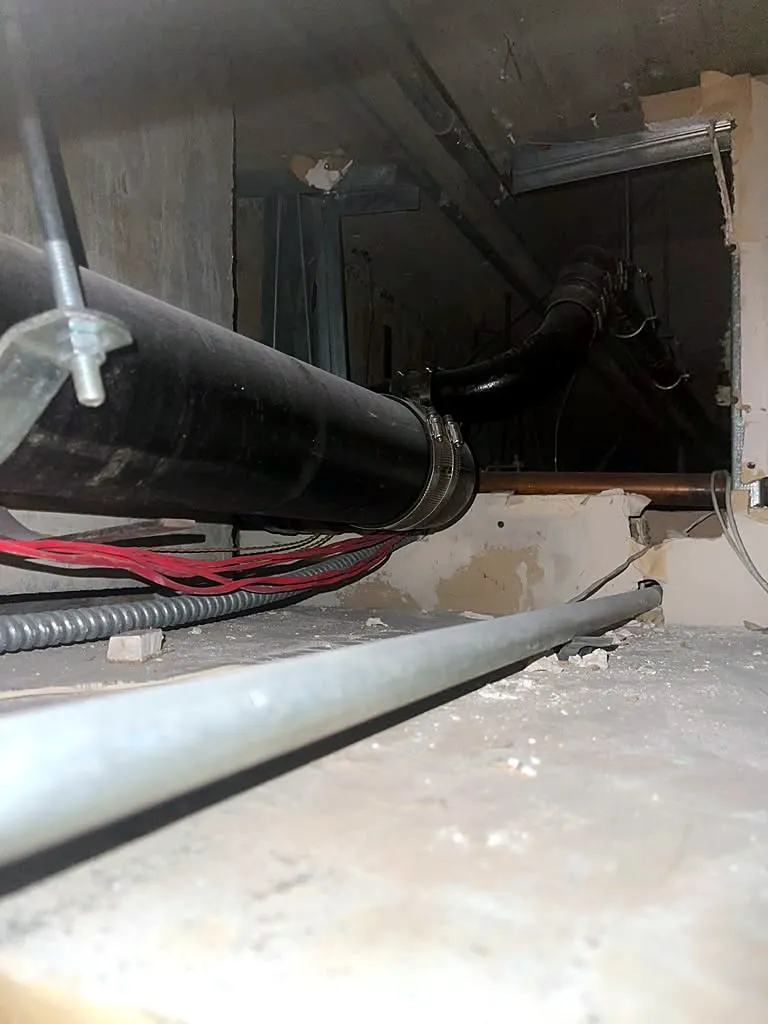

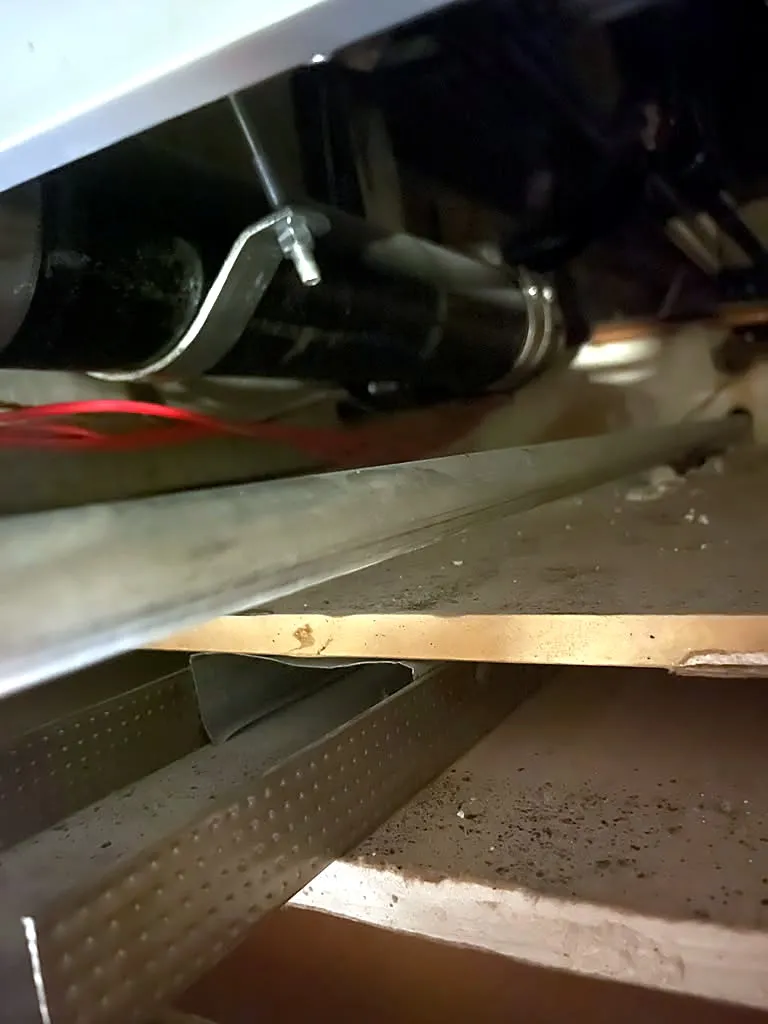

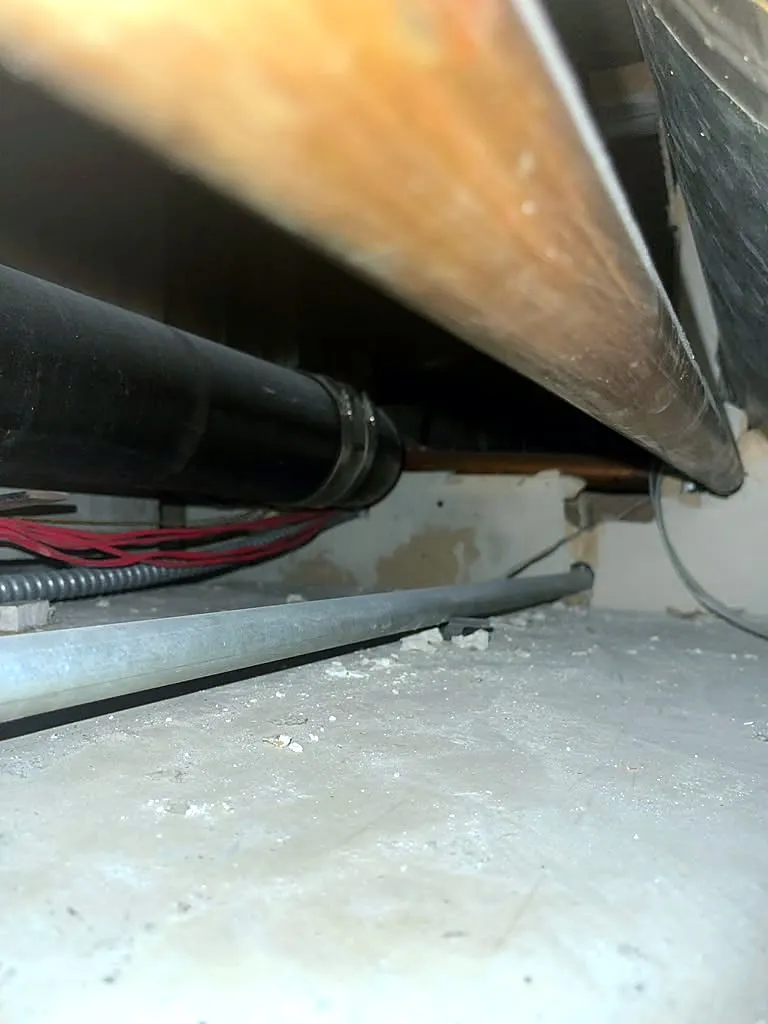

Step 3: The finished line

With the corroded bend and pipe gone and the rest of the line cleaned out, the drain flows freely again. The building now has a clear, solid section of cast iron where the line used to clog.

Signs your cast iron drain line needs attention

• The same drain clogs again a few weeks after it was cleared. The pipe is narrowing on the inside.
• Gurgling sounds from sinks or toilets when another fixture drains.
• Slow drains on more than one fixture, which points to the main line, not a single trap.
• Sewer smell or rust stains near exposed pipes.
• Water stains on a ceiling under a drain line, which can mean a leaking joint or a cracked pipe.

If a drain in your home or building keeps clogging, our drain cleaning service clears it and finds the cause. With the rainy season starting, a narrowed drain line is also more likely to back up during a storm. If you live in San Francisco near the Bay, read our guide on how to prevent a sewer backup during high tides.

Frequently asked questions

Can a clogged cast iron pipe be cleaned instead of replaced?

Often yes. If the pipe is still solid, cleaning or hydro jetting can restore the flow. When the walls are heavily corroded, cracked, or the same spot keeps clogging, replacing that section is the lasting fix.

How long does cast iron drain pipe last?

Cast iron drain lines can last for decades, and many Bay Area buildings still have their original pipes. Corrosion inside the pipe narrows it long before it fails completely, so slow drains and repeat clogs are often the first warning.

Do you have to replace the whole line?

Not always. In this job only the 90 degree bend and 10 feet of pipe were replaced. A camera inspection shows which sections are damaged so you only pay to replace what needs it.

Do you work in Palo Alto and the Peninsula?

Yes. Our base is in San Francisco and we take residential and commercial plumbing work across the Peninsula and the South Bay, including Palo Alto and Mountain View.
